API Overview

Due to language differences, the API will differ slightly between platforms, but in general, it provides the following methods:


Function

Parameters

Description

registerCallback

Message callback function/instance

Registers a callback with the analytics library which will be invoked when response action messages arrive from Verimatrix XTD. The same callback will also be used to signal errors back to the protected application.

sendMessage

JSON message to pass to Verimatrix XTD

Passes the specified JSON message to the analytics agent for processing and possible forwarding to Verimatrix XTD. The payloads use the same action types as the callback.

Message Callback

The message callback is a callback function that the analytics library will invoke when there is a response action payload available from the security analytics library. It defines a single method which when invoked, will be passed the response action payload JSON string.

Function

Parameters

MessageCallback#onMessage(@NonNull String messageJSON)(Android)

typedef void (*XTDStubLibCallback)(const char *messageJSON); (iOS)

Response action payload (JSON string)

Response Action Processing and Application State Handling

Due to the nature of the response actions and how they arrive from the Verimatrix XTD analytics backend, some consideration is needed in the application layer.

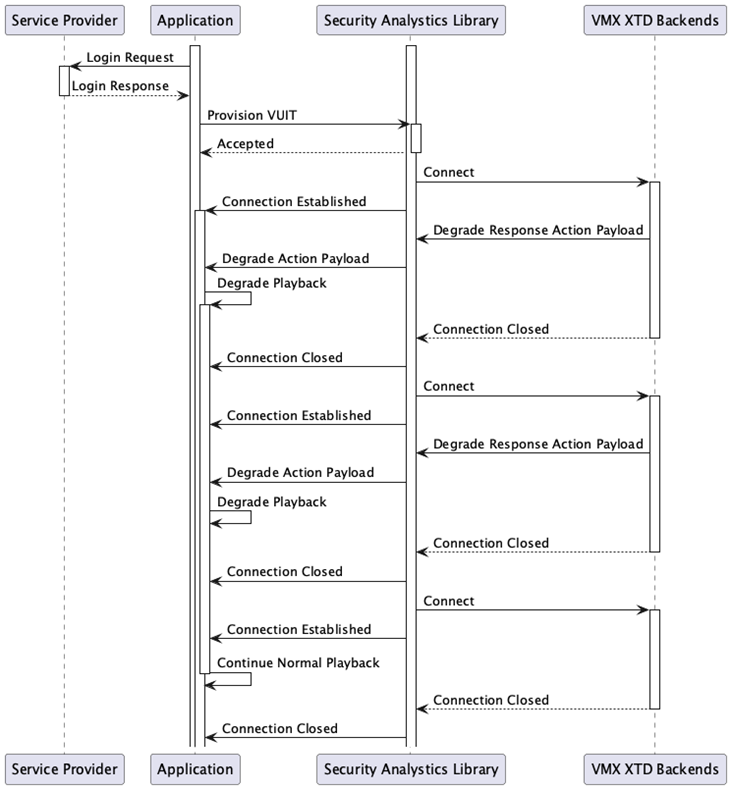

Response actions can be divided into 2 categories: an immediate, single action or a long-term, persistent action. If the action is an immediate, single action, the application can process the response action immediately and then not store any state. Long-term, persistent actions should be persisted in the session and the action enforced until a successful pair of connection established/closed events have been received without receiving another action, of the same type, in that connection window. Below shows an example of how this would work for the degrade action.


Error Handling & Error Codes

The sendMessage API will throw exceptions if there is something wrong with the JSON payload being sent. In addition, the message callback, mostly used to deliver response actions from the analytics agent, also delivers error messages back to the protected application if they happen asynchronously within the application.

Response Action Payloads

Payload Format

The general format of the response action payloads are as follows. The JSON is passed as is to the application as a string.

{
  "c":1,
  "v":1,
  "p" : { "some" : "command specific payload data"}
}

PropertyDescription
cMessage payload type
vPayload format version (currently always 1)
pAdditional payload, command specific

JSON Schema

The following defines the JSON schema for the action payloads.

{
  "$schema": "https://json-schema.org/draft/2020-12/schema",
  "$id": "https://verimatrix.com/xtd/response-actions-payloads/2025-01/schema.json",
  "title": "Verimatrix XTD Response Actions Payloads",
  "description": "Describes response actions payloads used when interacting with Verimatrix secure analytics library (SAIL)",
  "properties": {
    "c": {
      "description": "Defines the management action this payload carries.  ",
      "enum": [1, 2, 3, 6]
    },
    "v": {
      "description": "Indicate the version of the payload being carried",
      "enum": [1]
    },
    "p": {
      "oneOf": [
        {
          "type": "object",
          "properties" : {
            "spuid" : {
              type: "string"
            },
            "version" : {
              "type" "number"
            }
          }
          "required" : ["spuid", "version"]
          "additionalProperties": false
        },
      ]
    },
    "additionalProperties": false
  },
  "required": ["c", "v"],
  "additionalProperties": false
}

Response Action Types

The following action types are currently in use:

Payload TypeManagement Action NameAction Sent ByDescriptionAdditional Payload Data
0Error OccurredXTD SDKAn asynchronous error occurred within the XTD SDKNo
1Connection EstablishedXTD SDKA connection has been established to the XTD Analytics ServerNo
2Connection ClosedXTD SDKA connection to the XTD Analytics Server has been closedNo
3DegradeXTD SDKBackend has signaled that any on-going playback session should be degraded (in quality or otherwise) until further notice.No
6Provision VUITCustomer ApplicationProvisions the VUIT from the application into the analytics agent.Yes, see VUIT payload

Further detail of each action type is described below.

Connection Established

{
"v" : 1,
"c" : 1
}

Connection Close

{
"v" : 1,
  "c" : 2
}

Degrade

{
  "v" : 1,
  "c" : 3
}

Provision VUIT

{
  "v" : 1,
  "c" : 6,
  "p" : {
    "version" : 1,
    "spuid" : "SP::<VUIT Data>"
  }
}
